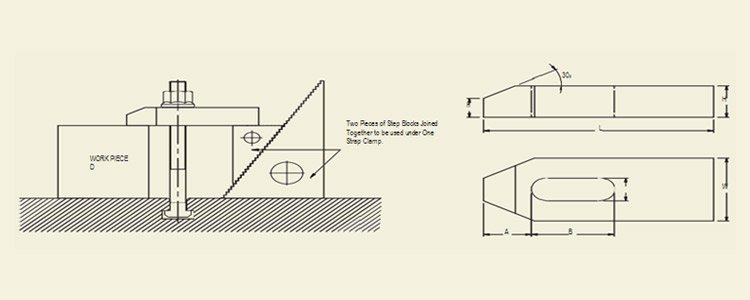

Strap Clamp
Hardened & Tempered, Black finish
| STRAP CLAMP - Hardened & Tempered, Black finish | ||||||||
|---|---|---|---|---|---|---|---|---|
| MODEL | D SUITABLE FOR BOLT | L | W | H | A | B | h | N.W. KGS |
| RSC-8-60 | M-8 | 60 | 24 | 12 | 13 | 20 | 7.00 | 0.09 |
| RSC-10-80 | M-10 | 80 | 30 | 15 | 15 | 30 | 9.00 | 0.23 |
| RSC-12-100 | M-12 | 100 | 38 | 18 | 21 | 40 | 12.00 | 0.43 |
| RSC-12-125 | M-12 | 125 | 38 | 18 | 21 | 50 | 12.00 | 0.56 |
| RSC-16-125 | M-16 | 125 | 48 | 24 | 26 | 45 | 15.00 | 0.85 |
| RSC-16-160 | M-16 | 160 | 48 | 24 | 26 | 65 | 16.00 | 1.11 |
| RSC-20-160 | M-20 | 160 | 62 | 30 | 30 | 60 | 18.00 | 1.89 |
| RSC-20-200 | M-20 | 200 | 62 | 30 | 30 | 80 | 18.00 | 2.4 |
| RSC-24-200 | M-24 | 200 | 72 | 38 | 35 | 80 | 21.00 | 3.39 |
| RSC-24-250 | M-24 | 250 | 72 | 38 | 35 | 100 | 21.00 | 4.3 |
| RSC-30-250 | M-30 | 250 | 72 | 48 | 45 | 100 | 28.00 | 5.26 |
